Qwind Casement Doors are crafted for spaces that demand style, durability, and performance. Designed using high-strength aluminium alloy 6063, these doors are engineered to meet modern architectural needs—offering security, noise control, and premium aesthetics. Whether for homes, villas, commercial spaces, or premium entrances, each variant in the Qwind Casement Door Series offers unique configurations and functional highlights.

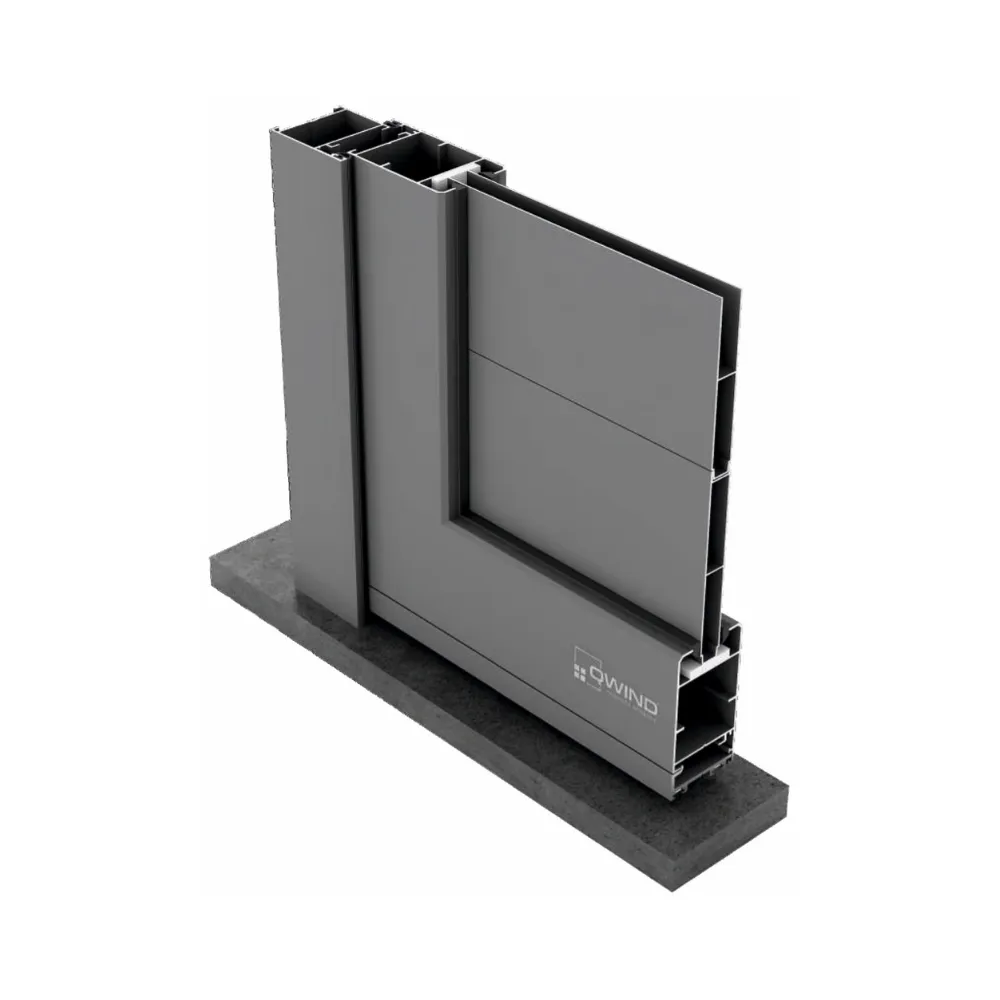

QDS-40 – Slim & Elegant Aluminium Panel Casement Door

This version is built with a sleek 15mm aluminium hollow panel and 15mm partition thickness, offering a refined minimalist look. Made from 6063 aluminium alloy, it’s ideal for areas where a lightweight yet sturdy door is needed. This door helps reduce outside noise by up to 15 dB, offering basic sound insulation for calm indoor spaces.

With a maximum shutter width of 1050 mm and height of 2400 mm, this variant supports up to 80 kilograms in shutter weight—suitable for most residential and commercial entries. The system supports either single or multi-point locking mechanisms, offering flexibility in security. A bottom frame can be included or excluded based on site needs. Hinges are of the butt type for reliable performance.

Available finishes include anodized, powder-coated, wood-effect, or PVDF-coated surfaces—customizable to match any décor. This door can be configured to open inward or outward, depending on space layout.

In terms of dimensions, the frame height is 50 mm, frame width is 40 mm, and the shutter profile ranges between 40 mm and 75 mm, giving it a streamlined yet substantial appearance.

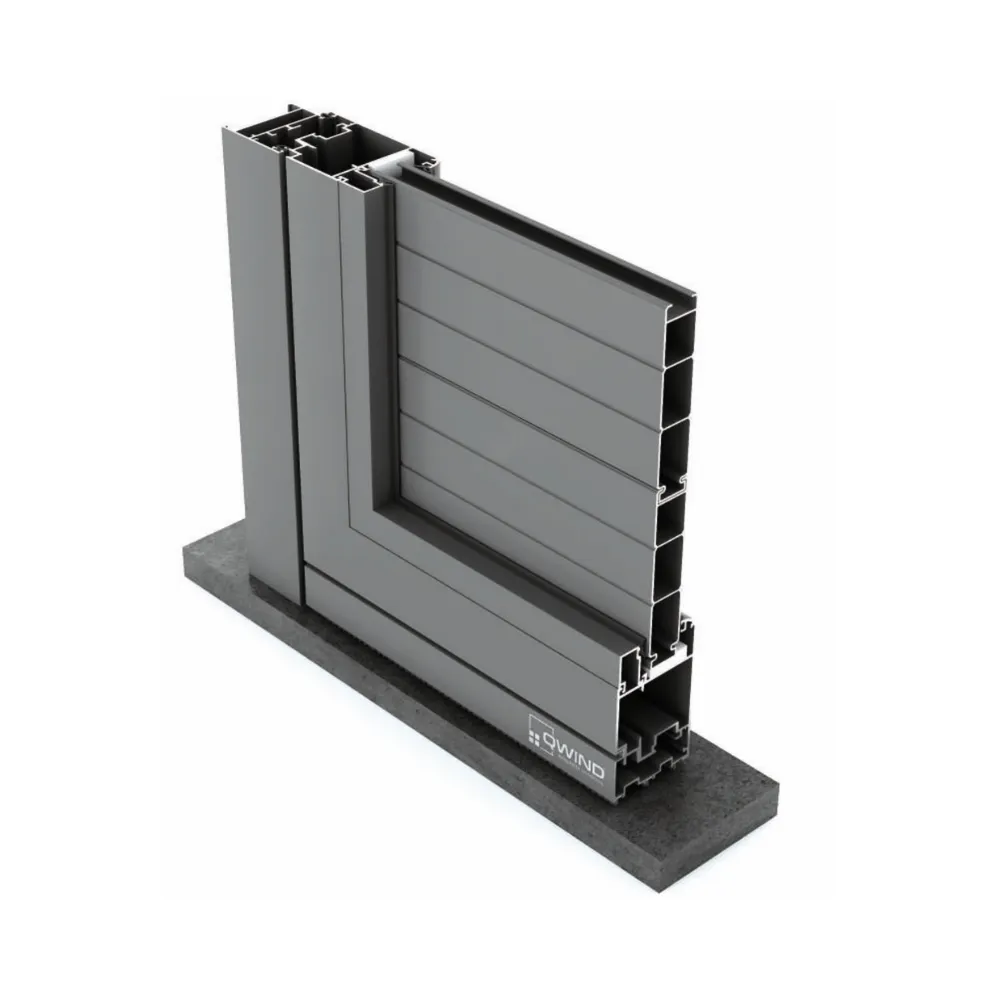

QDS-50 – Heavy-Duty Casement Door with Glass Panel Integration

Engineered for greater strength and larger openings, this model uses a 24mm thick aluminium hollow panel paired with glass options ranging from 5mm to 36mm—ideal for single, double, or laminated glazing. Constructed with 6063 aluminium alloy, it delivers consistent performance in both residential and commercial use.

With enhanced acoustic protection up to 15 dB, this model also allows larger panel sizes—up to 1200 mm wide and 2400 mm tall—while supporting a weight of up to 120 kilograms per shutter. Multi-locking options and bottom frame customization are available, making it a secure and adaptable choice.

Hinged on a butt mechanism, the door opens inward or outward and offers a broad palette of finishes—anodized, powder-coated, wood-textured, or PVDF-coated. Frame and shutter dimensions include a 50 mm height and width, with the shutter depth ranging from 50 mm to 79 mm—perfect for incorporating thick glass or custom inserts.

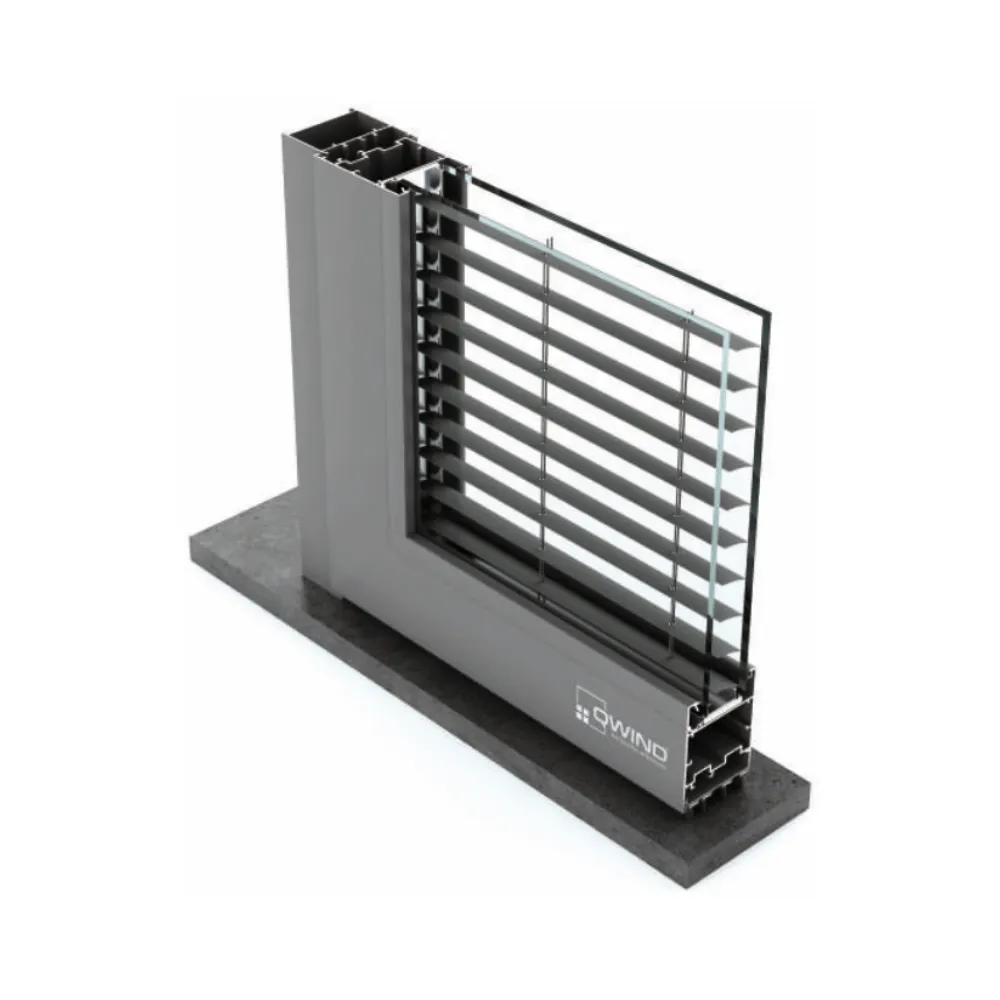

QDS-70 – Premium Casement Door with Integrated Blinds and Advanced Glazing

This is the top-tier model in the Qwind Casement Door Series, offering the highest specs for luxury homes, villas, and premium spaces. It supports advanced glazing options including laminated glass, DGU (double-glazed units), and DGU laminate, with glass thickness ranging from 30 mm to 46 mm. Designed for serious acoustic performance, it reduces external noise by up to 32 dB—making it a standout for urban or noisy environments.

This door can handle shutter dimensions up to 1200 mm wide and 3000 mm high—ideal for tall entryways—and supports a robust 150 kilograms per shutter. It includes optional integrated blinds, which can be fitted between glass layers for added privacy and solar control.

Made from durable 6063 aluminium alloy, this model features optional bottom frames, multi-point locking systems, and smooth butt hinges. Surface finishes include anodized, powder-coated, wood-effect, or PVDF-coated options for long-lasting beauty.

Dimensionally, this model comes with a 75 mm frame height, 70 mm frame width, and a shutter depth ranging from 72 mm to 95 mm—making it visually impressive and structurally strong.

Why Choose Qwind Casement Doors?

Each model in the Qwind Casement Door Series is thoughtfully designed to balance beauty, strength, and function. From minimalistic aluminium panels to premium laminated glass with built-in blinds, these doors bring unmatched sophistication to any space. With multiple locking systems, customizable frames, mosquito mesh options, and luxury finishes, Qwind Casement Doors redefine what an entry can be—secure, silent, and stunning.
